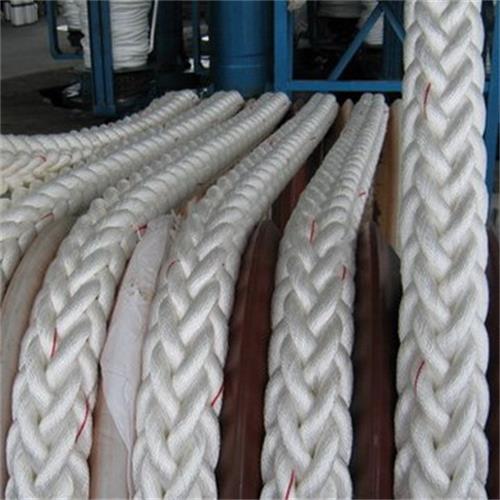

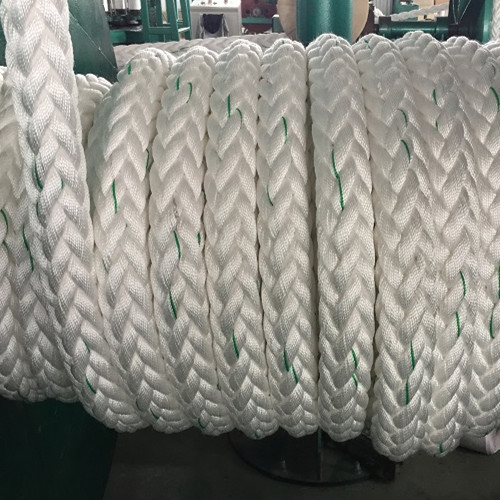

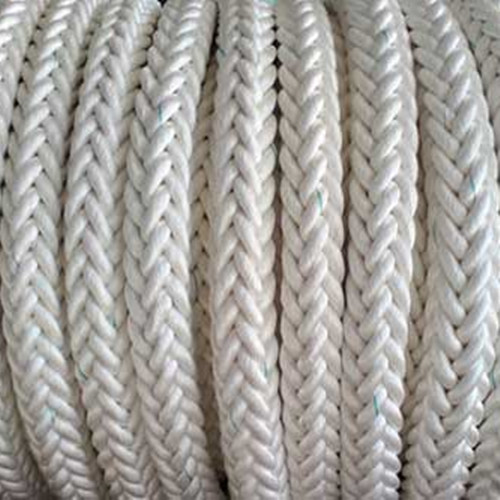

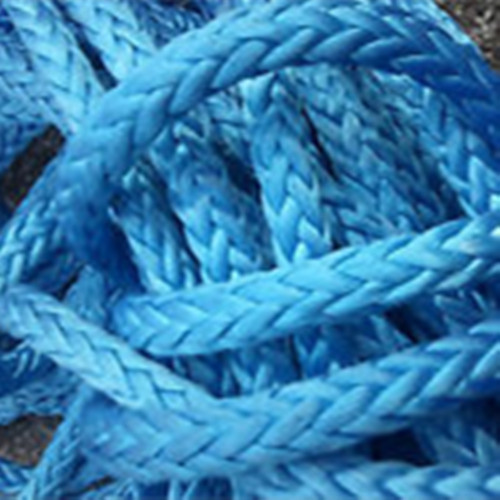

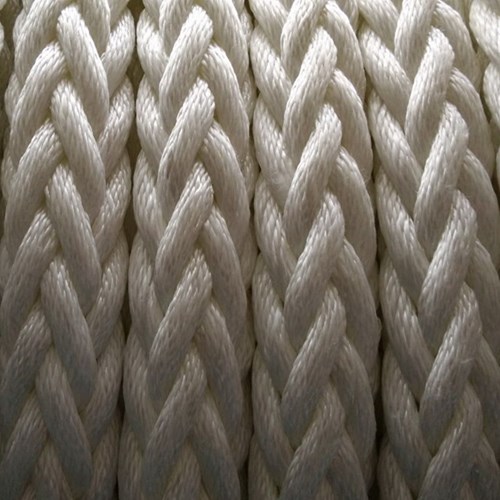

TWELVE-STRAND ROPES

Nylon multifilament(line),nylon,polypropylene filament(line),polypropylene,polyester,polyurethane and other series.

Φ28mm--146mm specifications.

Rational,scientific structure,super strength,wear resistancestrong,low elongation,smooth and pliable and easy to operate.

* Mooring Rope

* Winch Rope

* Towing Rope

* Military Defence

* Heavy Industry

* Shipbuilding

规格		锦纶复丝		锦纶		丙纶长丝		丙纶		涤纶
Specification		Polyamide multi-filament		Polyamide		Polypropylene fiber		Polypropylene Monofilament		Polyester
直径	圆周	重量	破断强力	重量	破断强力	重量	破断强力	重量	破断强力	重量	破断强力
Dia	Cir	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength
MM	Inch	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN
28	2003/1/2	108	17100	102	13400	90	12300	87	11000	133	13800
32	4	141	21600	135	16200	118	14600	114	14000	176	17000
36	2004/1/2	182	26900	175	20200	144	18300	141	17400	218	21000
40	5	223	32300	213	24200	178	22200	174	21100	270	25900
44	2005/1/2	268	38400	258	28800	212	26400	206	25200	333	30500
48	6	314	45000	298	33800	254	30700	244	28600	385	35900
52	2006/1/2	370	52300	355	39200	297	25400	286	33800	451	41900
56	7	432	58200	417	43700	344	39700	333	38600	525	47900
60	2007/1/2	489	66500	469	49900	393	45400	384	44200	601	53300
64	8	555	74900	536	56200	446	50500	435	49900	684	61900
72	9	703	93600	673	70700	567	64400	546	62700	865	81900
80	10	867	114400	836	86300	692	79500	682	77100	1067	94600
88	11	1050	140400	1009	105000	840	95300	815	92400	1291	113300
96	12	1244	164300	1193	123900	998	112300	965	109200	1538	134100
104	13	1468	199400	1408	145600	1176	128900	1144	124800	1804	154900
112	14	1703	224600	1632	168400	1365	148700	1323	144500	2090	176800
120	15	1968	256800	1887	192400	1565	170500	1513	166400	2398	203800
128	16	2244	291200	2142	218400	1765	192400	1711	187200	2728	230800
