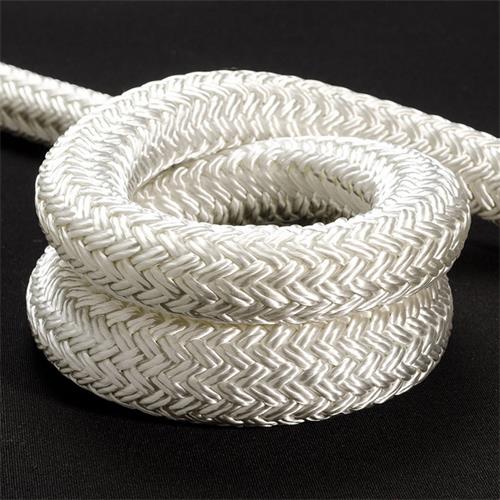

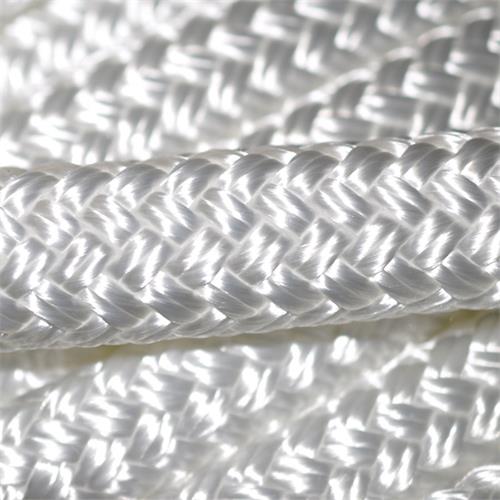

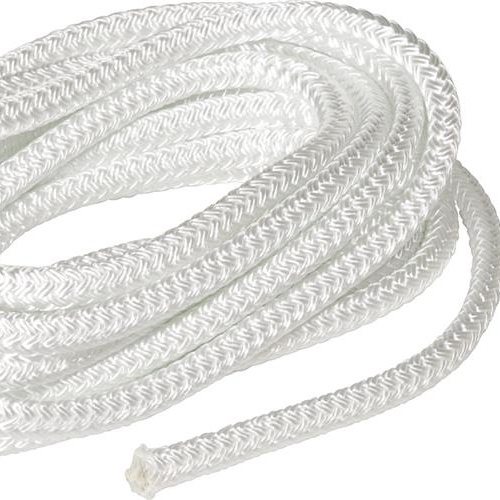

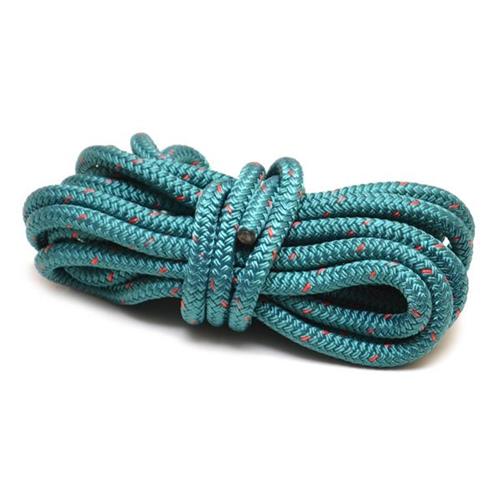

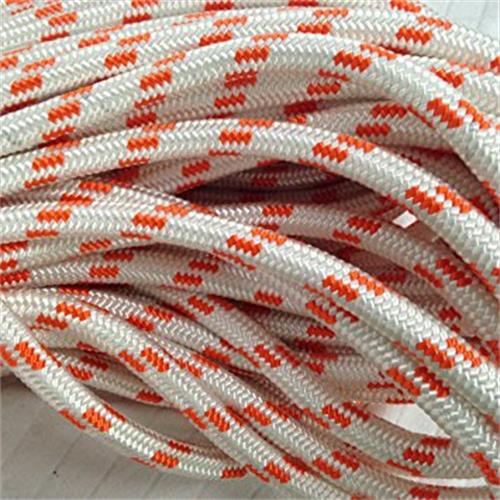

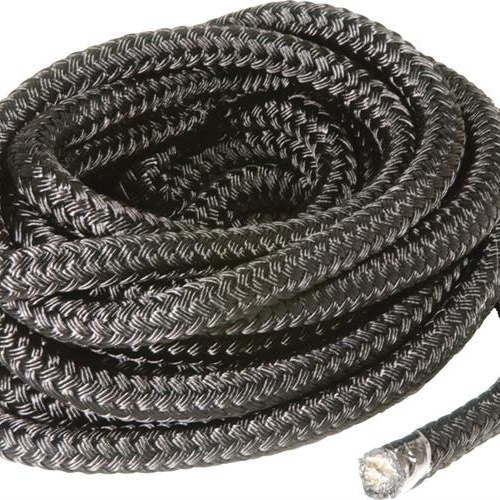

DOUBLE-BRAIDED ROPES

Varity

Nylon multifilament(line),nylon,polypropylene filament(line),polyester,but aat the outer compound made og two kinds of chemical fiber materials.Than the similar products of ts strength inceased by 10%.

Φ28mm--146mm specifications.

Advantage

High strength,good wear resistance, wide, low elongation,flating,easy to operate.

Application

* Ship Accessory

* Yacht Halyard

* Fishing Trawling

* Offshore Oil Drilling

* Military Defence

规格		锦纶复丝		锦纶		丙纶长丝		丙纶/涤纶长丝		涤纶
Specification		Polyamide multi-filament		Polyamide		Polypropylene fiber		Polypropylene /Polyester fiber		Polyester
直径	圆周	重量	破断强力	重量	破断强力	重量	破断强力	重量	破断强力	重量	破断强力
Dra	Cir	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength
MM	Inch	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN	Kg/220m	daN
28	2003/1/2	108	19200	102	14300	90	12600	120	13200	133	14600
32	4	141	24400	136	18300	118	15900	150	16600	176	18700
36	2004/1/2	182	30400	175	22800	144	19700	186	20800	218	23300
40	5	223	36600	213	27400	178	23200	227	24800	270	28100
44	2005/1/2	268	42600	258	31900	212	28000	273	29300	333	33300
48	6	314	51500	298	38600	254	33500	325	35200	385	39100
52	2006/1/2	370	60200	355	45300	297	39100	382	41200	451	46900
56	7	432	67600	417	50500	344	44300	443	46700	525	52500
60	2007/1/2	489	77800	469	58100	393	50900	508	52500	601	58700
64	8	555	88300	536	65400	446	57200	579	59700	684	68500
72	9	703	113300	673	81300	567	71600	710	75200	865	83900
80	10	867	131800	836	96600	692	85500	904	89800	1067	100900
88	11	1050	155500	1009	116400	840	100700	1093	120100	1291	123600
96	12	1244	183300	1193	138000	998	119500	1320	142100	1538	148300
104	13	1468	213200	1408	159600	1176	139000	1550	160600	1804	169900
112	14	1703	246200	1632	185400	1365	162000	1772	187500	2090	196700
120	15	1968	282200	1887	212100	1565	185400	2030	212200	2398	224500
128	16	2244	360000	2142	272900	1765	237000	2360	265200	2728	288400
